Product Details
＋
KEY FEATURES
- 2000W Max Class-D Amplifiers
- 8" Woofer, 1.4" Compression Driver
- Four DSP Speaker Modes
- Bluetooth Audio Streaming & Speaker Link
- Two Combo XLR-1/4" Balanced Inputs
- XLR Mix or Speaker Link Output
- 62 Hz to 20 kHz Frequency Response
- 90 x 60° Dispersion
- USB Charging Port for Smart Devices

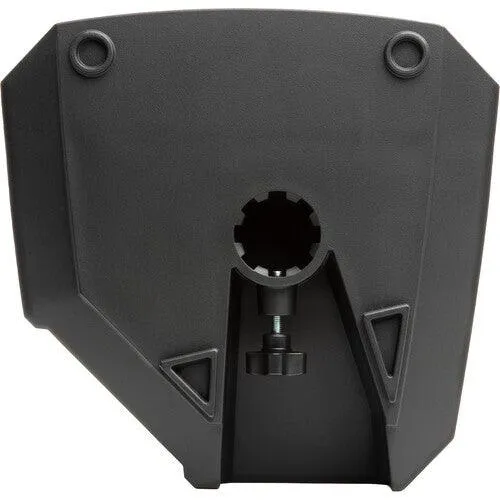

- Pole Socket & Flying Suspension Points
DESCRIPTION

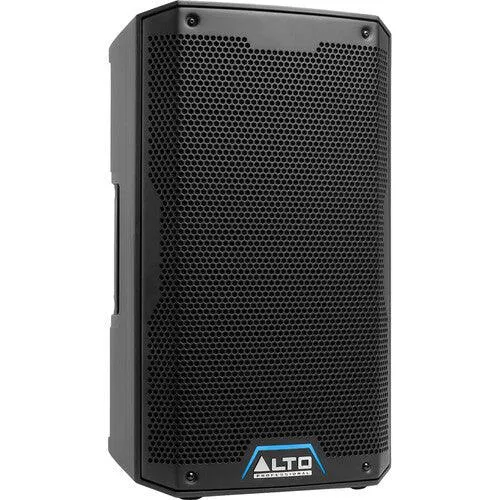

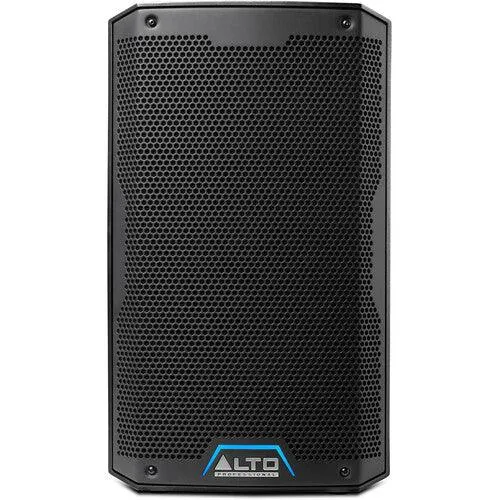

Compact, lightweight, and designed for reliability, the TS408 2000W Active Loudspeaker from Alto Professional is a versatile 2-way loudspeaker that delivers potent, room-filling sound for nearly any application. Bluetooth compatibility allows you to stream your audio wirelessly or connect a second loudspeaker for a completely cable-free stereo setup.
The TS408 features two combo XLR-1/4" balanced inputs with an XLR output for your final mix or for linking directly to a second loudspeaker. An onboard mixer makes dialing in the perfect performance a cinch, but further options are provided by the free Alto App to remotely adjust any settings, including custom 5-band EQ presets and three DSP speaker modes, with instant recall ability. The loudspeaker even comes with flexible mounting options for meeting any application demand, whether they require freestanding placement, wedge monitor use, pole socket mounting, or even flown rigging.
At a Glance
- 2000W peak (1300 LF 700 HF), 1000W continuous RMS (650 LF 350 HF)
- Free Alto App (iOS/Android) for remote configuration and control
- Bluetooth audio streaming direct from device
- Onboard DSP with four speaker use modes (including custom EQ via App)
- True Wireless Stereo (TWS) speaker linking via Bluetooth
- Integrated 3-channel mixer with dual XLR-1/4" combo inputs, mic/line switches, and independent level controls
- XLR Mix output, speaker use, and sub size controls
- 8" woofer with 2.0" high-temperature voice coil
- 1" exit ceramic driver with 1.4" coil
- Lightweight enclosure for easy transport, setup, and installation
- Versatile design: pole-mountable, wedge monitor, or flown application with integral M6 suspension points
- Powerful and efficient Class-D amplifiers with fanless cooling design to run cleaner, quieter, and with greater long-term reliability
- Designed and tuned in the USA
True Sonic Power
- Whether you need a powerful vocal PA or club-shaking bass performance for a DJ set, TS4 speakers deliver loud, clear, room-filling sound for any application.
- With an 8-inch woofer, and a 1.4-inch compression driver, TS408 delivers 2000W of class-leading power and clarity in equal measure.
Free Alto App for Remote Configuration and Control
Available free for both Android and iOS, the Alto App gives hands-on remote control over Bluetooth levels, Speaker Use Modes, Custom EQ and Sub Size selection. Further, True Wireless Stereo linking can be configured remotely via the app to save time during setup
Integrated 3-Channel Mixer

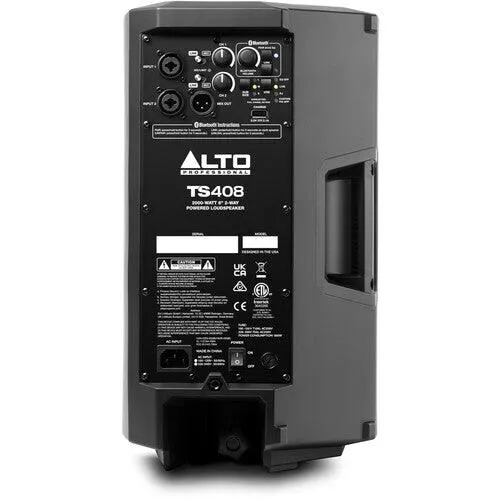

Every TS4 features an integrated 3-channel mixer, with two Mic/Line input channels and a dedicated Bluetooth channel. The Mic/Line channels feature XLR-1/4" TRS combo jacks and can be used with microphones, instruments, and line-level signals without the need for additional hardware or adjustment. Just plug straight into the rear panel and you're up and running.
Simple Bluetooth Streaming and Speaker Linking
- The ideal high-powered streaming solution, TS4’s built-in Bluetooth connectivity makes it easy to pair your laptop, phone, or tablet and get the music pumping in no time at all.
- With the True Wireless Stereo function, you can stream Bluetooth audio to two TS4 speakers in perfect stereo without the need for any cables.
DSP Modes for the Best Sound in Every Application
TS4's three preset "Speaker Use" modes let you optimize the speaker for any application, so you'll get great sound every time at the touch of a button. For even more control over your sound, you can configure a Custom EQ within the Alto App and remote adjust the settings from any listening point in the venue. You can even save your favorite Custom EQ setting direct to the TS4 for easy recall whenever you need it.
Versatile and Reliable
- From the high-quality drivers to the fanless class-D amplifiers, every aspect of the TS4 Series has been designed for superb reliability, whether used for mobile gigs and performances or fixed installation.

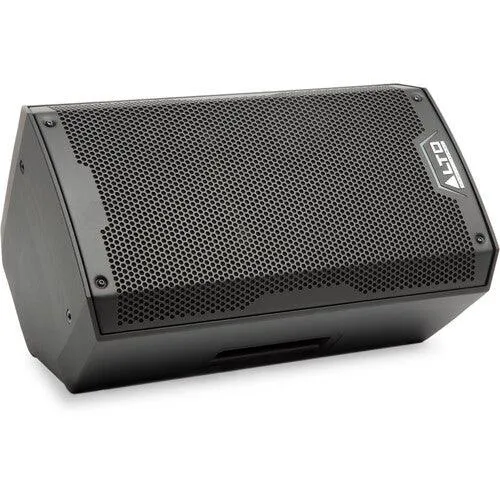

- Each speaker features a lightweight, sleek, black box design that can be used as the application demands: freestanding, as a wedge monitor, pole-mounted or suspended via the integrated suspension points.
SPECIFICATIONS
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 2000 W Peak |
| Amplifier Power Rating | LF: 1 x 1300 W Peak (at 2 Ohms) HF: 1 x 700 W Peak (at 4 Ohms) |
| Amplifier Class | HF/LF: Class-D |
| HF Drivers | 1 x 1" / 2.5 cm Ceramic Compression Driver |
| HF Voice Coil | 1.4" / 3.6 cm |
| LF Driver | 1 x 8" / 20.3 cm Woofer |
| LF Voice Coil | 2" / 5.1 cm |
| MF Driver | None |
| Frequency Range | 52 Hz to 20 kHz -10 dB |
| Frequency Response | 62 Hz to 20 kHz ±3 dB |
| Maximum SPL | 130 dB (Peak) 127 dB (Continuous) |
| Coverage Angle | 90° H x 60° V |
| Gain Range | Line Input: to 10 dB Mic Input: to 50 dB |
| I/O Impedance | 1/4" Line Input: 10 Kilohms (Balanced) 20 Kilohms (Unbalanced) XLR Mic Input: 1.2 Kilohms (Balanced) |
| Protections | Signal Limiter, Thermal, Transducer Overdrive |
| Audio I/O | 2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line Input 1 x XLR 3-Pin Male Balanced Link/Mix Output |
| USB | 1 x USB-A (2.0, Device Charging) |
| Wireless Connectivity | Bluetooth |
| AC Input Power | 100 to 120 VAC, 50 / 60 Hz (T 10 A L 250 V) 220 to 240 VAC, 50 / 60 Hz (T 5 A L 250 V) |
| AC Power I/O | 1 x IEC Input |
| Power Consumption | 900W |
| Dimensions | 17.2 x 10.1 x 9.6" / 43.7 x 25.7 x 24.4 cm |
| Weight | 20.7 lb / 9.4 kg |
| Package Weight | 26.13 lb |
| Box Dimensions (LxWxH) | 21.2 x 14.5 x 14.4" |
